When it comes to surface cleaning, selecting the right MEG 1/4 nozzles is crucial in achieving the desired pressure and gallon per minute (GPM) output. These nozzles play a pivotal role in ensuring efficient and effective cleaning, making it important to understand their specifications and functionality. This guide will help you navigate through the process of selecting the appropriate MEG 1/4 nozzles for your surface cleaner.

Understanding Pressure and GPM

Before diving into nozzle selection, it’s essential to comprehend the relationship between pressure and GPM. The pressure, measured in pounds per square inch (PSI), and the flow rate, measured in gallons per minute (GPM), are interdependent factors that determine the effectiveness of your surface cleaner. Higher PSI generally means more force, while a higher GPM indicates a larger volume of water being used. The right balance between these two will ensure optimal cleaning performance.

Factors to Consider in Nozzle Selection

Several factors need to be considered when selecting MEG 1/4 nozzles for your surface cleaner:

1. Nozzle Size: The size of the nozzle aperture directly affects the pressure and flow rate. Smaller nozzles produce higher pressure but lower GPM, while larger nozzles produce lower pressure but higher GPM. Refer to the manufacturer’s chart to find the nozzle size that matches your desired PSI and GPM.

2. Spray Angle: The spray angle influences the coverage area and intensity of the spray. Common angles include 0°, 15°, 25°, and 40°. Narrow angles (0°) provide concentrated force, ideal for tough stains, while wider angles (40°) offer broader coverage, suitable for larger areas.

3. Material: Nozzles are available in various materials like stainless steel, brass, and ceramic. Stainless steel nozzles are durable and corrosion-resistant, making them ideal for heavy-duty use. Brass nozzles are more affordable but may wear out faster. Ceramic nozzles offer excellent wear resistance but are more brittle.

Steps to Select the Right Nozzle

Follow these steps to select the right MEG 1/4 nozzle for your surface cleaner:

1. Determine the Required PSI and GPM: Check your surface cleaner’s specifications to find the recommended PSI and GPM. This information is usually provided by the manufacturer.

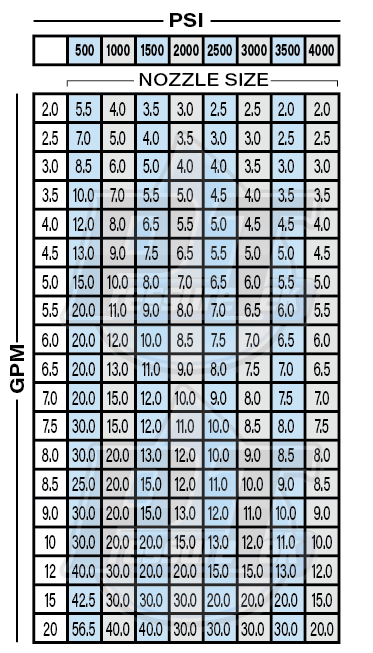

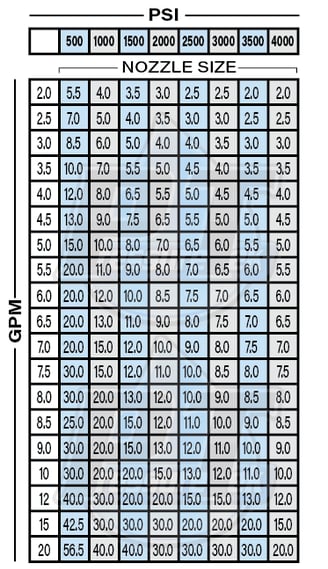

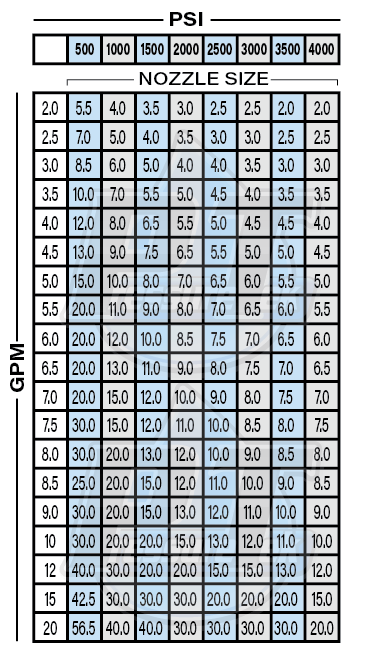

2. Use a Nozzle Chart: Refer to a nozzle chart that matches nozzle sizes with PSI and GPM outputs. This will help you identify the appropriate nozzle size for your requirements.

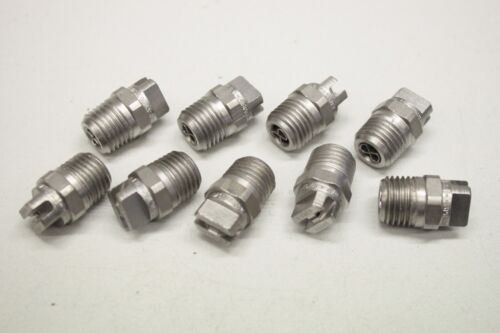

Introduction to MEG 1/4 Nozzles

3. Select the Spray Angle: Choose a spray angle based on the type of cleaning you’ll be performing. For example, use a narrow angle for stubborn dirt and a wide angle for general cleaning.

4. Consider the Material: Select a nozzle material that suits the intensity and frequency of your cleaning tasks. Stainless steel is recommended for most applications due to its durability.

Conclusion

Selecting the right MEG 1/4 nozzles for your surface cleaner is essential in achieving the optimal pressure and GPM output. By understanding the relationship between pressure and flow rate, considering factors like nozzle size, spray angle, and material, and following a systematic approach, you can ensure efficient and effective cleaning performance. Always refer to manufacturer guidelines and use a nozzle chart for precise selection.
